40 Series 3 Slot Mount – Single Flange Short High-Cycle Linear Bearing

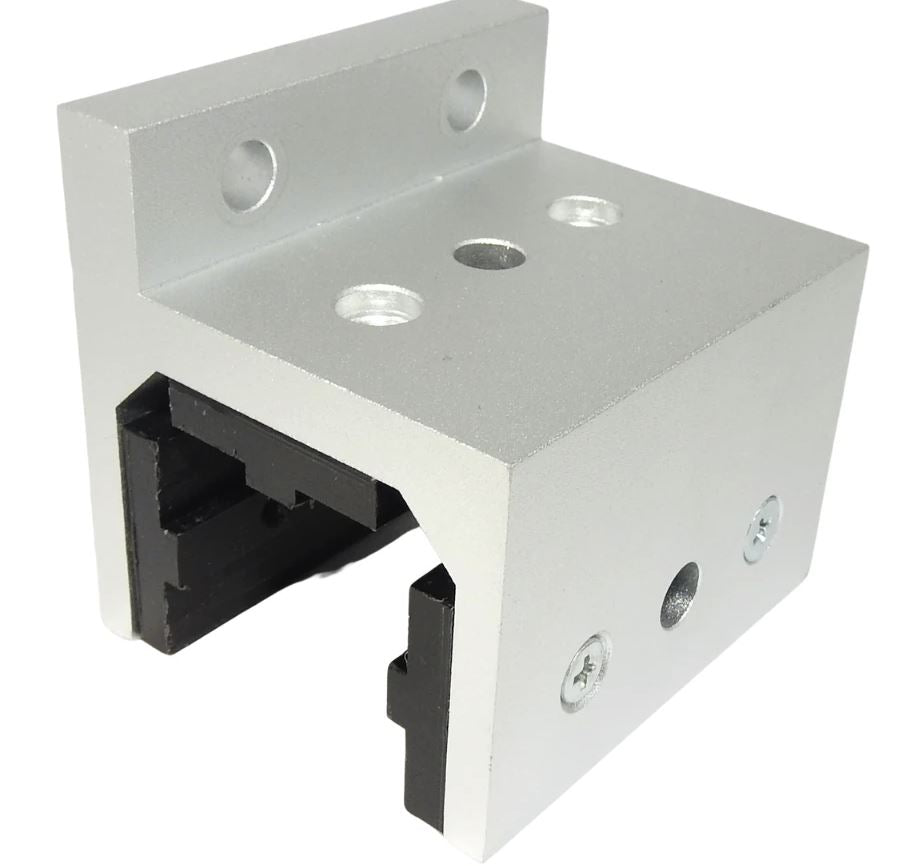

40mm Slider Block – 40 Series

The Linear T-Slot 40mm Slider Block is a maintenance-free, cost-effective alternative to traditional roller wheels and grease-lubricated bearings. Engineered specifically for 40 Series aluminium extrusion systems, this bearing block uses durable, replaceable black nylon sliders to deliver smooth, self-lubricating motion—completely eliminating the need for oil or grease.

Unlike roller wheels or metal bearings that require frequent lubrication and are prone to attracting dust and debris, this solid-state sliding mechanism ensures consistent, quiet performance with minimal wear. The nylon sliders are securely fastened into the aluminium block, providing strength during operation while remaining easy to replace when worn—maximizing long-term reliability and cost efficiency.

Constructed from high-grade aluminium alloy with a silver anodised finish, the block offers excellent corrosion resistance and mechanical durability. The black nylon sliders offer low-friction movement along the T-slot profile, reducing wear and extending service life.

Key Features

• Maintenance-Free Operation – Self-lubricating nylon sliders require no grease or oil, reducing maintenance and keeping systems clean.

• Smooth & Silent Performance – Nylon sliders eliminate noise, vibration, and wear on aluminium profiles.

• Replaceable Sliders – Easily replace worn sliders by unscrewing them, extending the product’s life.

• Robust Construction – Made from anodised aluminium for strength, corrosion resistance, and long-term use.

• Easy Installation – Installs effortlessly onto 40 Series T-slot extrusions with pre-installed sliders.

Compatibility

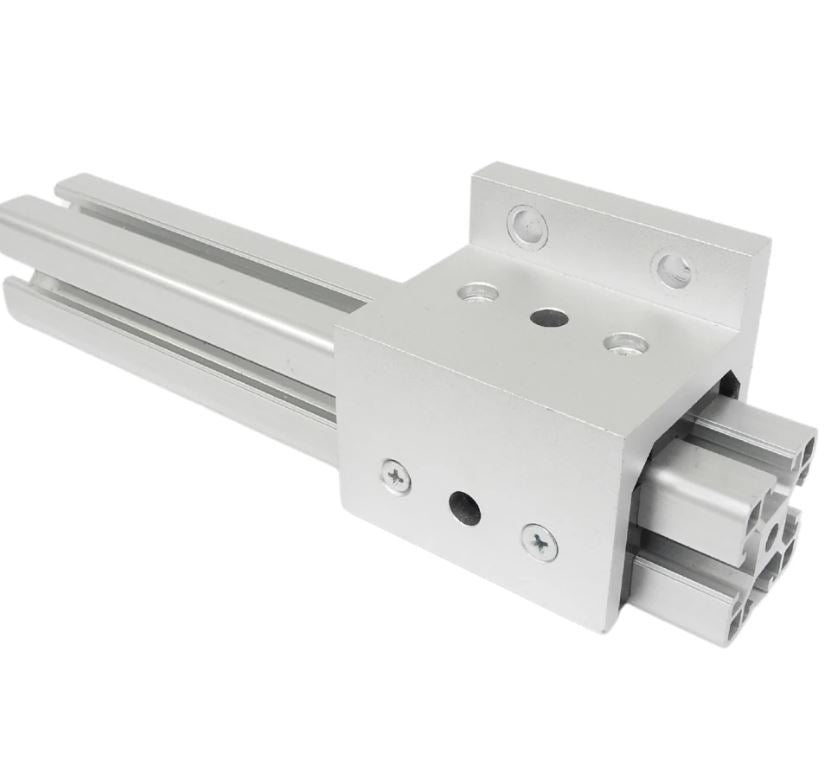

• Designed for use with 40 Series T-slot aluminium profiles

Applications

• CNC Routers & Laser Cutters – Precise, low-friction movement in linear rail systems.

• 3D Printers & DIY Motion Assemblies – Guides print heads or platforms with consistent stability.

• Sliding Doors & Machine Guards – Enables smooth, controlled motion for protective panels.

• Camera Sliders & Filming Rigs – Provides accurate, vibration-free movement for video production.

• Industrial Workstations & Assembly Lines – Supports adjustable fixtures, jigs, and tools.

• Custom Furniture & Framing – Perfect for sliding shelves, racks, or modular workstations.

• Robotics & Automation Projects – Ideal for guiding robotic arms or moving components in automated systems.

Installation Guide

1. Position the Slider Block – Align with the 40 Series aluminium extrusion.

2. Slide into the T-slot – Ensure the nylon sliders properly engage with the profile.

3. Secure in Place – Use an M8 x 16mm Cap Head Bolt to fix the block firmly.

4. Test the Motion – Slide the block along the profile to confirm smooth operation.

5. Replace Sliders as Needed – When sliders wear out, simply unscrew and replace them.

Package Includes

• 1× 40mm Slider Block with pre-installed Nylon Sliders

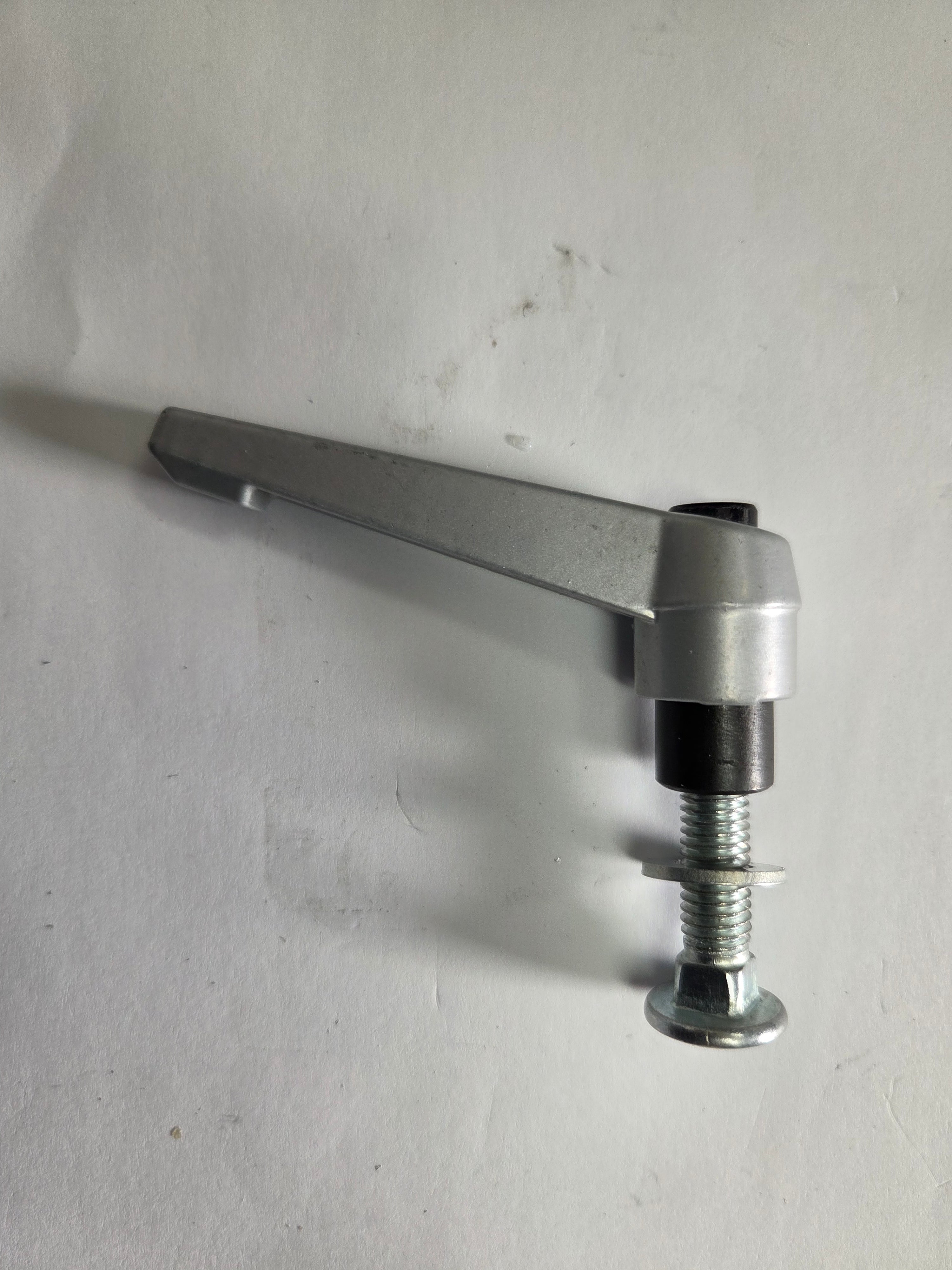

• 1X Suitable Clamp lever with T nuts and washer

Technical Specifications
