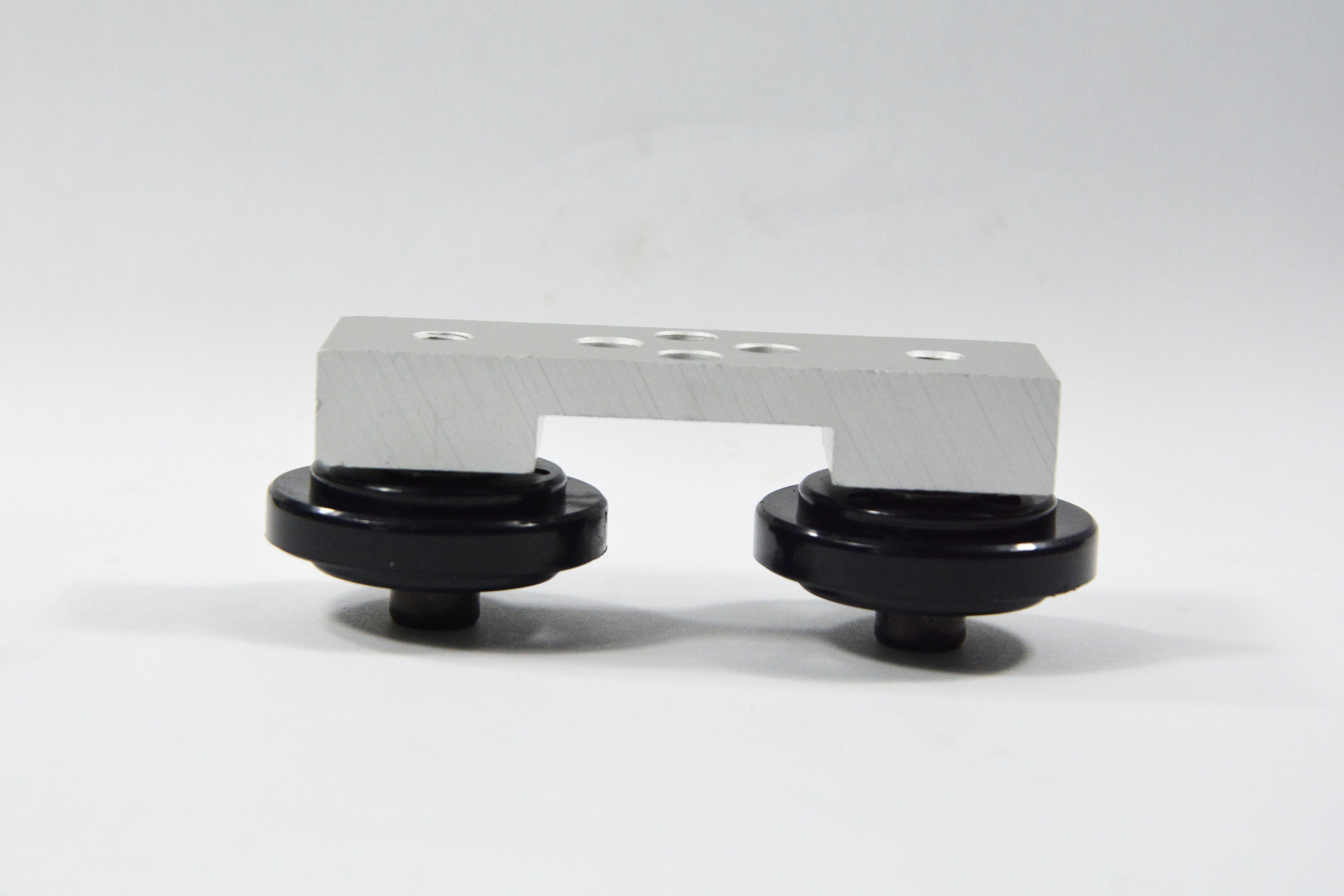

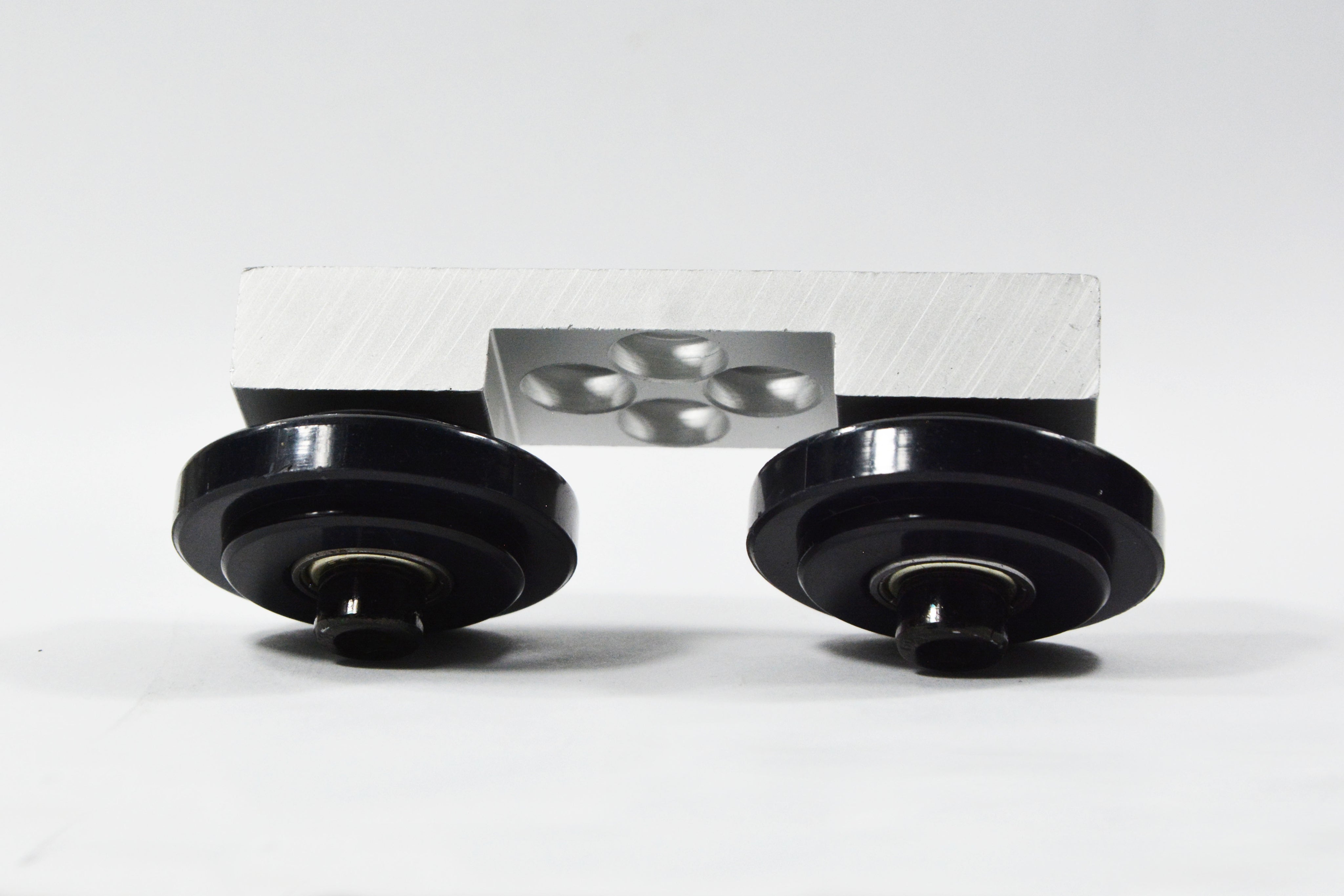

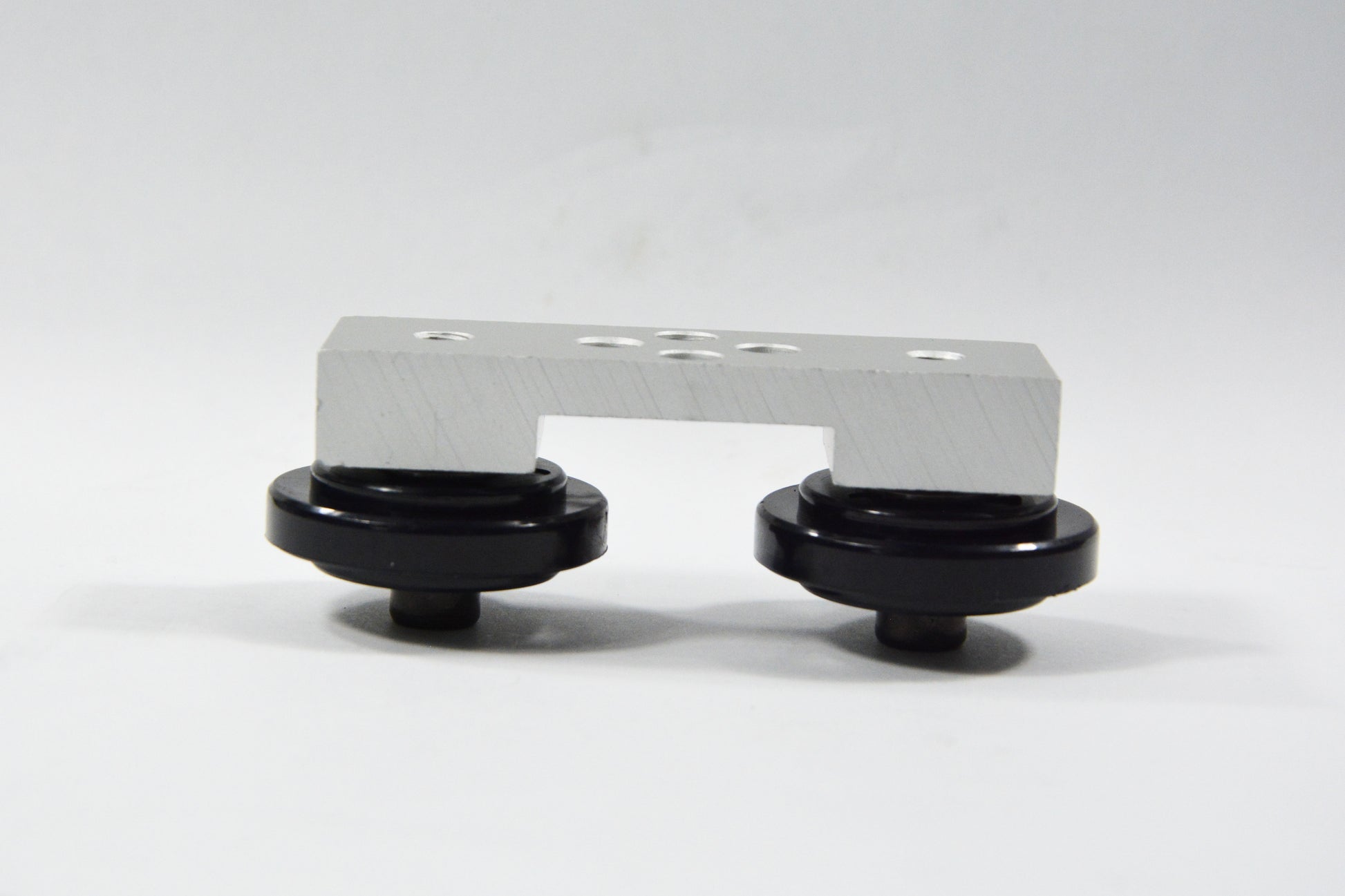

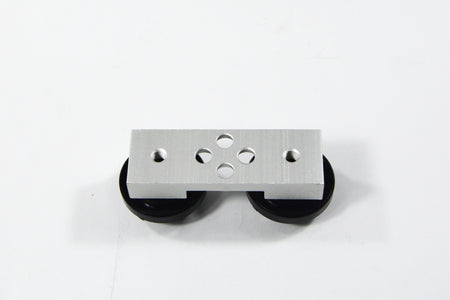

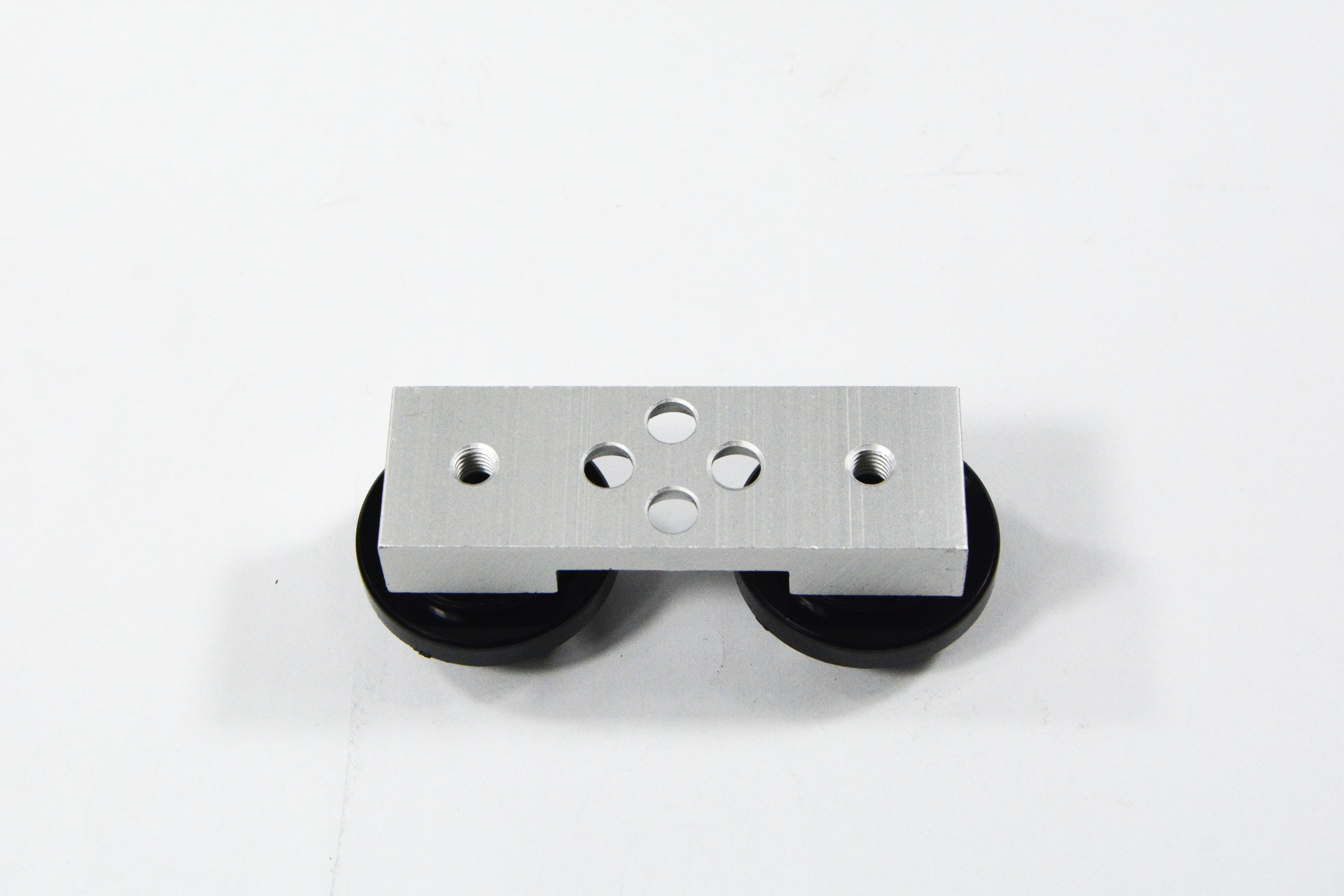

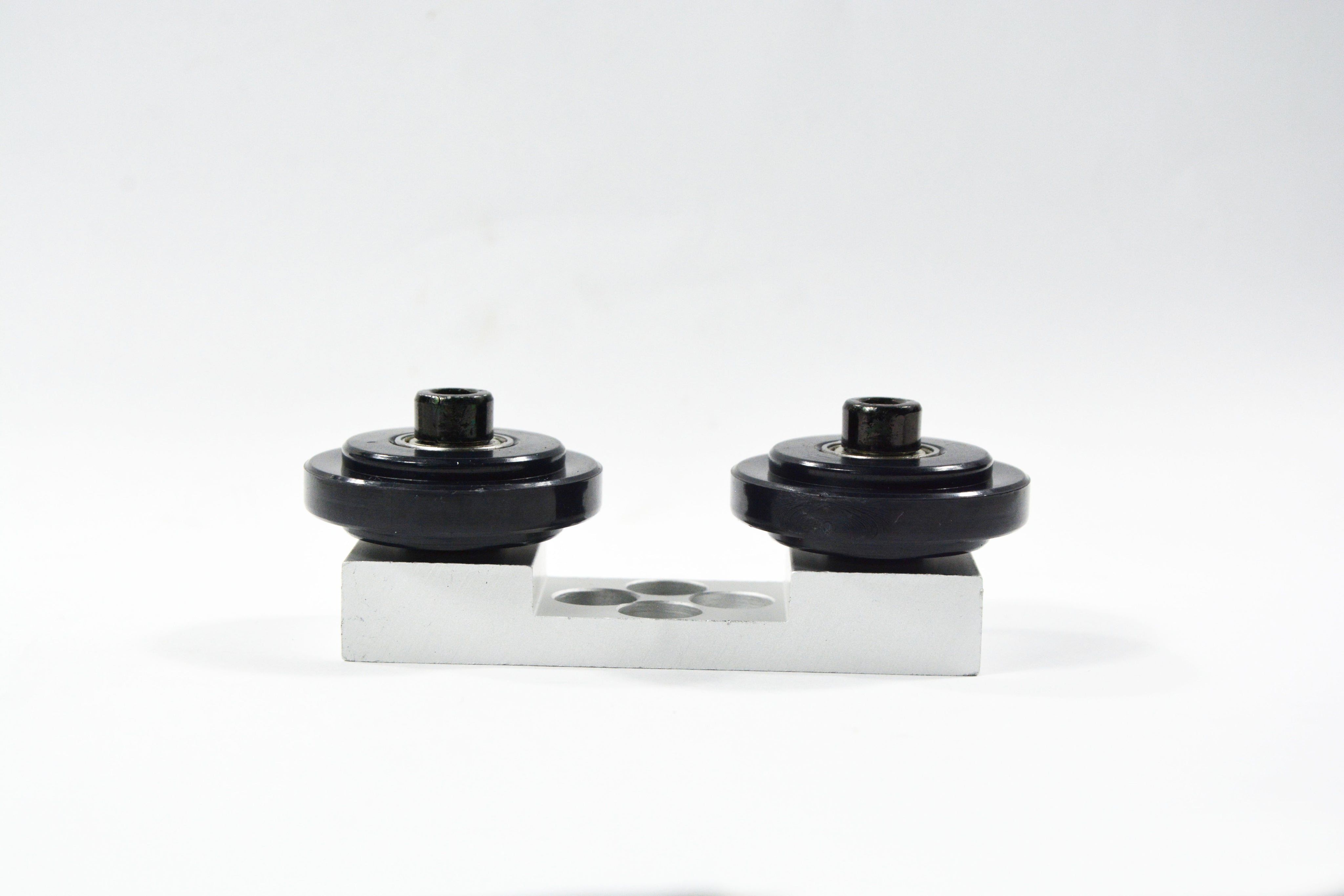

40 Series Dual Roller Wheel Bracket Assembly

🔧 Product Overview

• The assembly includes an anodized aluminum bracket and two dual roller wheels.

• Designed to mount to 40mm T‑slot aluminum extrusion  typically the open‑slot side.

• Commonly used in moving door frames, linear glide systems, track systems, and panel assemblies.

🛠️ Technical Specifications

• Wheel diameter: ~54 mm (dual-wheel, ball-bearing or permanently lubricated bushings)

• Bracket dimensions: ~40 mm wide × ~19 mm thick × either ~123 mm

• Weight: ~0.91 kg

• Materials: Bracket – aluminum (anodized clear,Wheels – Black nylon PA,

• Hardware: Included M8 socket-head cap screws.

⚙️ Applications

• Ideal for sliding door or panel systems within 40 Series T‑slot frames.

• Used in linear guides, machine guards, enclosures, and custom framing requiring smooth guided motion.

• Suitable for DIY, robotic, automation, packaging, and industrial framing systems.

🧭 Choosing the Right Version

• Length: ~123 mm.

• Finish: Clear anodized is standard.

📝 Summary Description

The dual roller wheel bracket assembly mounts to a T-slot profile and includes one dual roller wheel bracket and two roller wheels with  ball bearings. The assembly is commonly used to create door frames, linear glides, or track systems. The mounting hardware is included.
