40 Series Short – Single Mount Unibearing™ Assembly

40 Series Short – Single Mount UniBearing™ Assembly

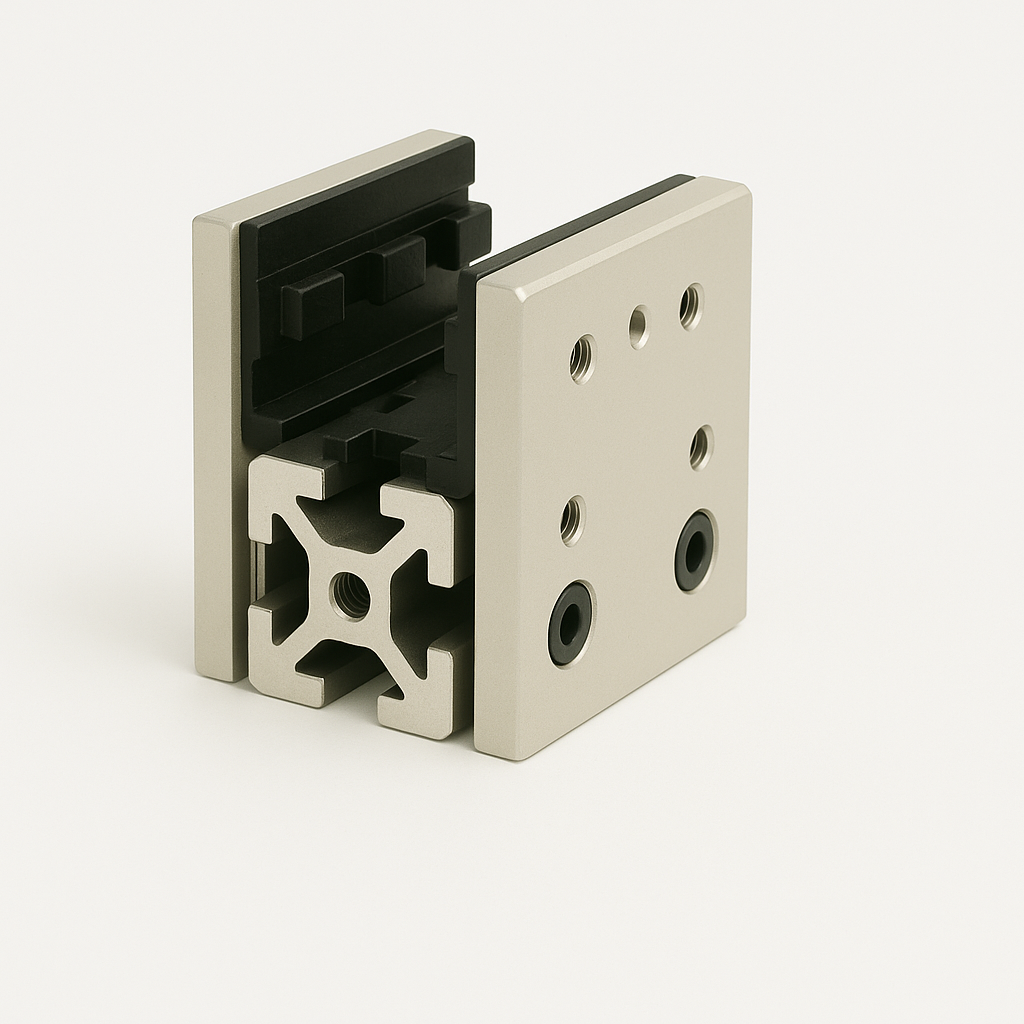

The 40 Series Short – Single Mount UniBearing™ Assembly is a reliable and compact linear motion solution, engineered for use with T-slot aluminum profiles in automation, positioning, and structural applications. This unit is built around a durable UniBearing™ block that glides smoothly along the extrusion, providing precise and low-friction linear travel.

Ideal for space-conscious designs, this short-length version is perfect for applications requiring efficient, single-side mounting.

Key Features:

• Compact UniBearing™ Design:
  Short single-mount housing saves space while delivering smooth, consistent motion.

• Pre-Tapped Mounting Holes:
  Both the profile ends and housing include pre-tapped holes for quick attachment of accessories and fixtures.

• Shim Kit Included:
  Comes complete with shim kits for precise alignment and spacing during installation.

• Ready for Linear Applications:
  Designed specifically for sliding or guided motion along 40 Series T-slot profiles.

• Durable Construction:
  High-strength aluminum and precision machining ensure long-lasting performance under repeated use.

Applications:

• Linear guide systems

• Pick-and-place assemblies

• Adjustable workstations

• Framing systems with moving parts

• Automated material handling setups

Specifications:

• Series: 40 Series

• Type: Short – Single Mount

• Material: Anodized aluminum and steel hardware

• Compatibility: Fits 40mm T-slot extrusions

• Includes: UniBearing™ assembly + Shim Kit
