Mean Well HDR-15-24 | 15W Ultra Slim DIN Rail Power Supply

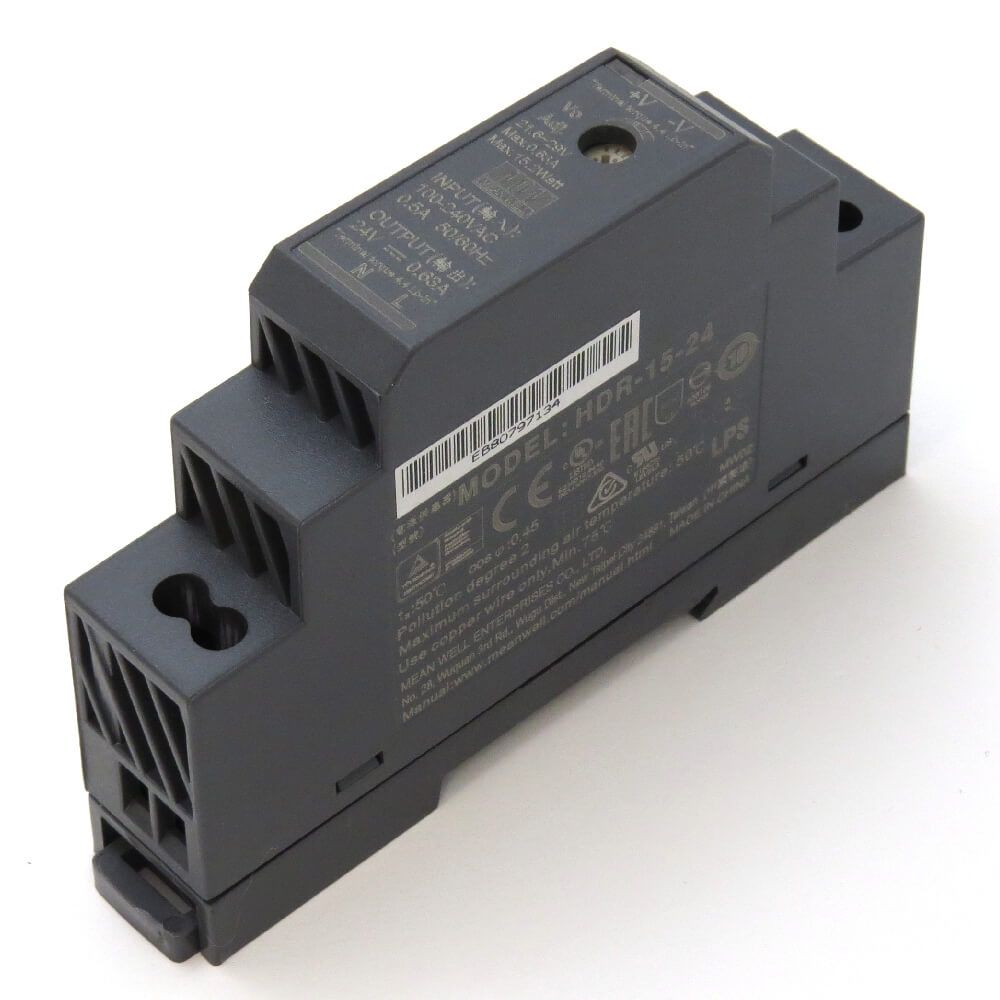

The Mean Well HDR-15-24 is a compact and efficient 15W AC-DC power supply designed for DIN rail mounting. With a 24V DC output at 0.63A, it's ideal for space-constrained industrial applications requiring reliable power delivery.

Key Features:

• Compact Design: Ultra-slim 17.5mm width (1SU) fits standard TS-35/7.5 or TS-35/15 DIN rails, optimizing panel space.

• Wide Input Range: Accepts 85–264V AC input, with 277V AC operational, ensuring global compatibility.

• High Efficiency: Achieves up to 86% efficiency, reducing energy consumption and heat generation.

• Safety & Compliance: Meets UL 508, UL 62368-1, EN 61558-2-16, and EN61000-3-2 standards, ensuring safe operation in various environments.

• Cooling Method: Operates via free air convection, eliminating the need for additional cooling mechanisms.

• Model: HDR-15-24

• Output Voltage: 24V DC

• Rated Current: 0.63A

• Rated Power: 15.2W

• Input Voltage: 85–264V AC

• Efficiency: Up to 86%

• Mounting: DIN rail (TS-35/7.5 or TS-35/15)

• Dimensions: 90 x 17.5 x 56 mm

• Weight: Approximately 70g

Applications:

Ideal for use in control panels, industrial automation, security systems, and other applications requiring compact and efficient power solutions.
